LM120

Liftmobile for lifting 120 kg

Technical specifications


Max. loadcapacity: 120 kg
Lifting speed: 60 mm/s
Max. displacement: 0.80 m (option up to 1.10 m)
Height: 1.55 m
Width: 0.52 m
Nose plate depth: 0.35 m
Weight: 43 kg

Battery: NiMH 24 V / 9 Ah
Operating radius: up to 200 times
Battery charging time: 8 hours
when fully discharged
Drive motor: 2 pcs
Material: coated steel
Warranty: 2 years


Contact us for a free quote

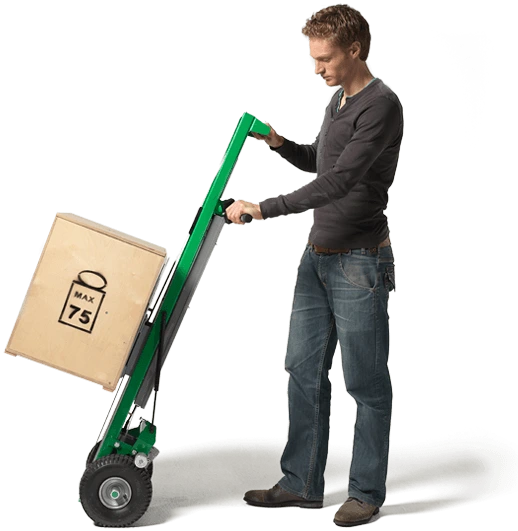

Tiller®-liftmobile, the most compact self-loading electric and portable lifting aid

With the liftmobile LM120 you can lift, assemble and move heavy appliances such as washing machines, tumble dryers, refrigerators, boilers and heat pumps weighing up to 120 kg.



The LM120 liftmobile has a lifting capacity of 120 kg. Maximum lifting height is 0.80m. The LM120 is supplied with standard pitch scoop. The lifting speed is 60 mm/s.



The liftmobile allows you to deliver heavy objects on your own. The liftmobile is self-loading and lifts itself into the van.



Sorry!!! No frames available or your browser does not support frames!


Advantages of the Tiller®-liftmobile:

  • One manpower needed instead of two or three
  • Safe lifting, mounting and moving with one compact device
  • Lifting work by young and old, woman and man: no more staff shortages!
  • Maneuverable as a hand truck
  • For sustainable and longer employability
  • Easy operation and handling
  • Lightly controllable; easy to keep in balance
  • Prevents loss of employment
  • Prevents working conditions fines for physical load
  • To be used in many situations and places
  • No tailgate required on your van
  • Lift itself into the van and on platforms



Applications, occupations or industries in which this liftmobile can be used:

  • Stacking Boxes
  • Packages
