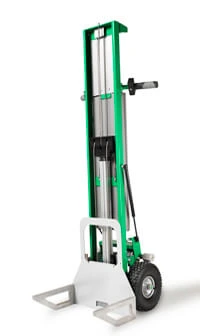

LM75PFS

Liftmobile with Palletfork

Technical specifications


Max. loadcapacity: 75 kg
Lifting speed: 100 mm/s
Max. displacement: 1.10 m
Height: 1.55 m
Width: 0.52 m
Nose plate depth: 0.35 m
Weight: 42 kg

Battery: NiMH 24 V / 9 Ah
Operating radius: up to 200 times
Battery charging time: 8 hours
when fully discharged
Drive motor: 2 pcs
Material: coated steel
Warranty: 2 years


Contact us for a free quote

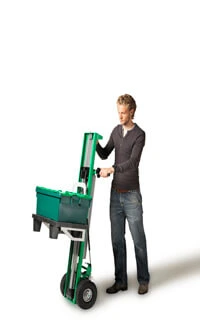

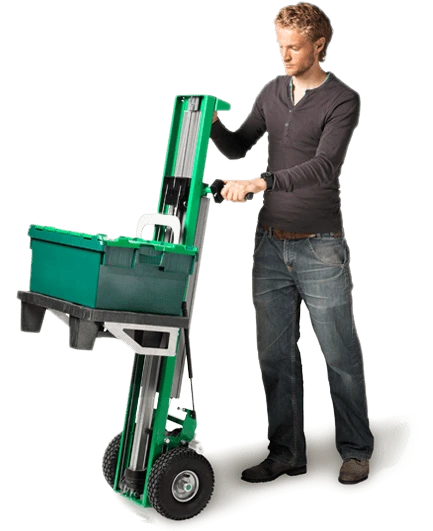

Lifting pallets with short or long pallet fork on the Tiller®-liftmobile

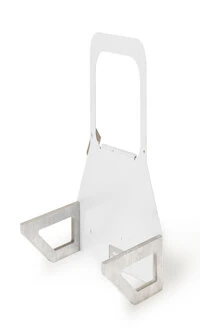

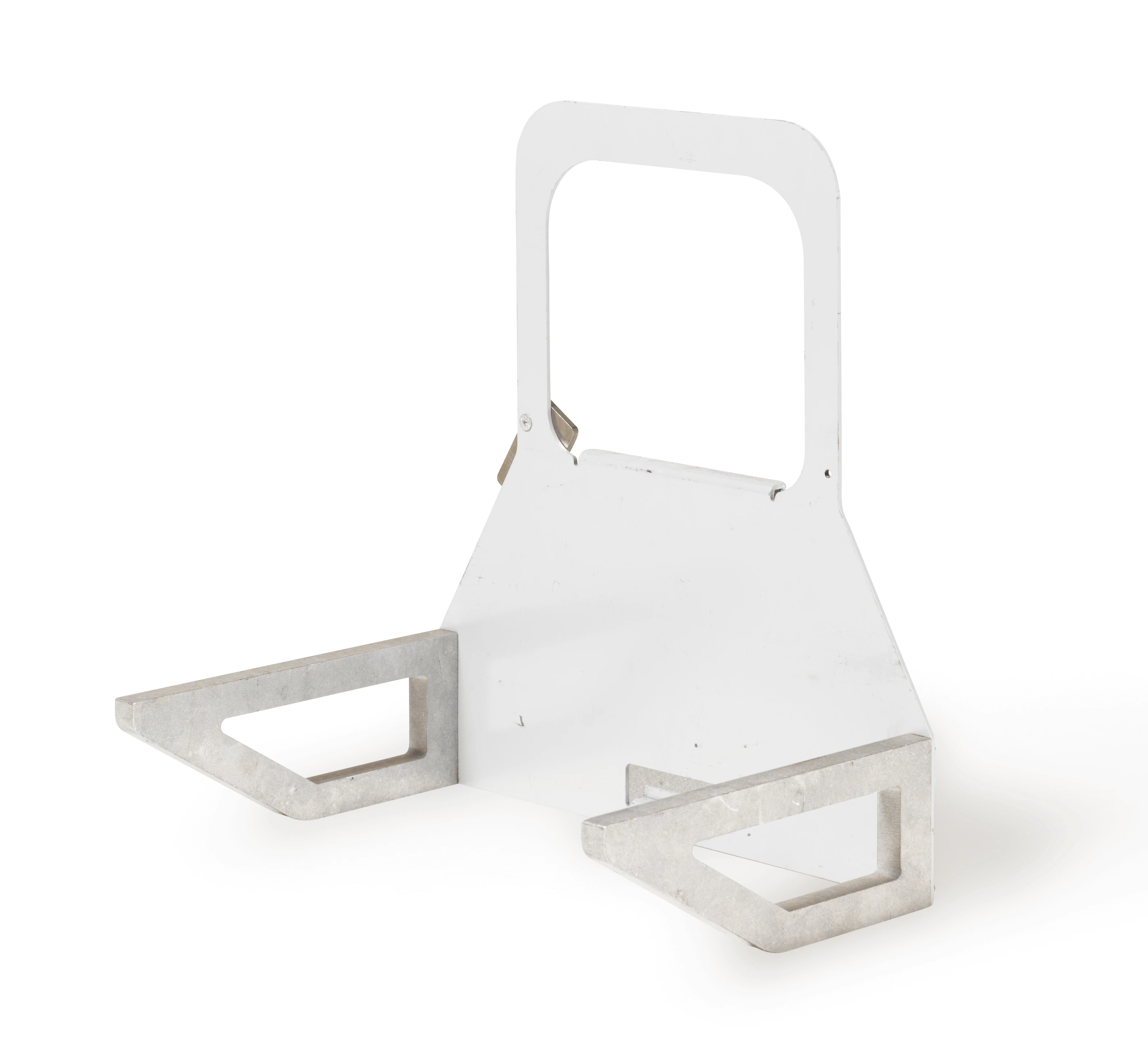

Liftmobile with a capacity of 75 kilograms and addition of the Pallet Fork Short accessory. Maximum lifting height is 1.10m. This accessory gives the Tiller®-liftmobile a specific application for transporting and lifting all kinds of plastic and wooden (display) pallets and materials on plastic and wooden (display) pallets.



Sorry!!! No frames available or your browser does not support frames!


Applications, occupations or industries in which this liftmobile LM75PFS can be used:

  • Social Workplace
  • Supermarkets



Contact us for a free quote
